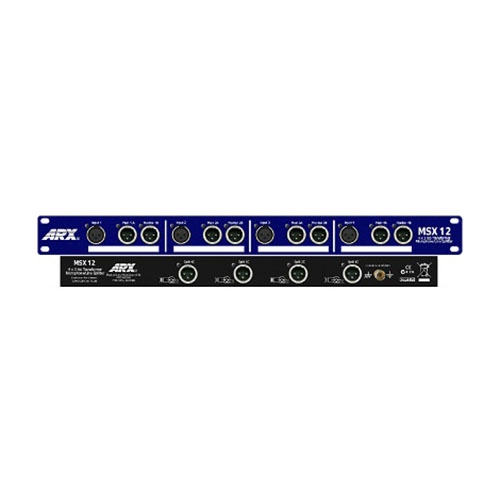

4 in, 12 Out ISO-Transformer Microphone Splitter, Line Splitter

Input Impedance 300 Ohms

Output Impedance 2 secondaries @ 600 Ohms each

Frequency Response 30Hz - 20 KHz ± 1dB

Maximum Output Level + 20dBm

THD at Max Output 0.2% 30 Hz - 20KHz @ 20dBm

Insertion Loss 0.5dB @ 1 KHz (600 Ohm source & load)

Input Connectors 3 pin female XLR wired Pin 2 + Hot, Pin 3 – Cold

Main Output 3 Pin male XLR wired Pin 2 + Hot, Pin 3 – Cold

Monitor & Aux Output Split 3 pin male XLR wired Pin 2 + Hot, Pin 3 – Cold. Audio grounds not connected; Pin 1 is floating.

Weight 5 lbs (2.2 Kg)
