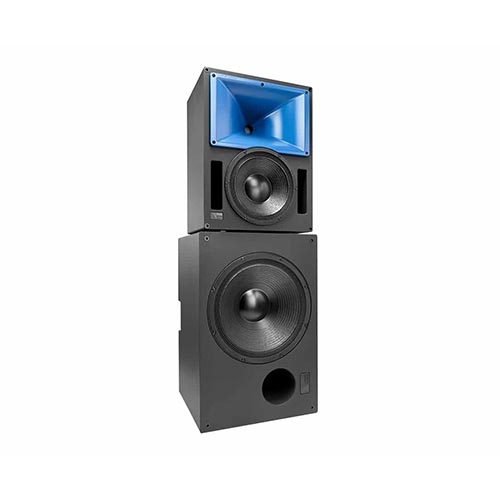

블루혼 시스템
파워풀하고 위상 변이가 없는 전대역 모니터링 스피커는 그저 이론으로만 존재하던 개념이였습니다. 지난 6년간의 연구 끝에 전체 가청주파수 스펙트럼에서 완벽하게 평탄한 음압과 위상응답을 제공하는제품을 개발해 스튜디오 모니터에서 새로운 레퍼런스를 만들었습니다. 타협 없이 녹음한 그대로의 소리를 들려줄 것입니다.
강력한 디지털 프로세싱은 Bluehorn 시스템의 핵심입니다. 독자적인 위상 보정 알고리즘은 원래의 위상 관계와 신호를 복원하면서 최소한의 레이턴시를 가집니다.
Bluehorn 시스템의 향상된 드라이버의 물리적 정렬 기술과 내부 DSP 프로세싱은 소리를 착색하는 위상 변이를 최소화 합니다. 이는 전례없는 정확도와 디테일을 제공합니다.
SPECIFICATIONS
ACOUSTICAL
Operating Frequency Range : 20 Hz – 22 kHz
Frequency Response : 22 Hz – 22 kHz ±4 dB
Phase Response : 25 Hz – 22 kHz ±45°
Linear Peak SPL : 130 dB (M-noise), 127 dB (Pink noise), 129 dB (B-noise)
COVERAGE
Horizontal Coverage 80°
Vertical Coverage 50°
TRANSDUCERS
Low Frequency : One 18 in cone driver; nominal impedance: 4 Ω
Low Frequency : One 12 in cone driver; nominal impedance: 2 Ω
High Frequency : One 4 in diaphragm compression driver; nominal impedance: 12 Ω
AUDIO INPUT
Type : Differential, electronically balanced
Connectors : XLR 3-pin female input with male XLR loop output
Input Impedance : 10 kΩ differential between pins 2 and 3
Wiring
Pin 1: Chassis/earth through 1 kΩ, 1000 pF, 15 V clamp network to provide virtual ground lift at audio frequencies
Pin 2: Signal +
Pin 3: Signal –
Case: Earth ground and chassis
Nominal Input Sensitivity : 10 dBV (3.2 V rms) continuous is typically the onset of limiting for noise and music
AMPLIFIER
Type : Class D, Two-channel (Bluehorn); One-channel (Bluehorn Subwoofer)
Total Output Power : 1300 W peak (Bluehorn); 900 W peak (Bluehorn Subwoofer)
THD, IM, TIM : < 0.02%
Cooling : Convection, with recessed heat sink
AC POWER
Connectors : powerCON 20 input with loop output to loop between the Bluehorn and the Bluehorn Subwoofer
Voltage Selection : Automatic, continuous from 90–265 V AC
Safety Rated Voltage Range : 100–240 V AC, 50–60 Hz
Turn-on/off Points : 90 V AC turn-on, no turn-off; internal fuse-protection above 265 V AC
RMS NETWORK (OPTIONAL)
Equipped with two-conductor twisted-pair network, reporting all operating parameters of amplifiers to system operator’s host computer.
PHYSICAL
Dimensions Bluehorn : W: 19.00 in (482.6 mm) x H: 25.38 in (644.5 mm) x D: 14.95 in (379.6 mm)
Dimensions Bluehorn Subwoofer : W: 20.65 in (524.5 mm) x H: 31.00 in (787.4 mm) x D: 19.85 in (504.2 mm)
Weight : Total system: 162 lb (73.5 kg); Bluehorn: 74 lb (33.6 kg); Bluehorn Sub: 88 lb (39.9 kg)
Enclosures : Premium multi-ply birch, slightly textured black finish with black cloth protective grille frame
