MPS-482HP

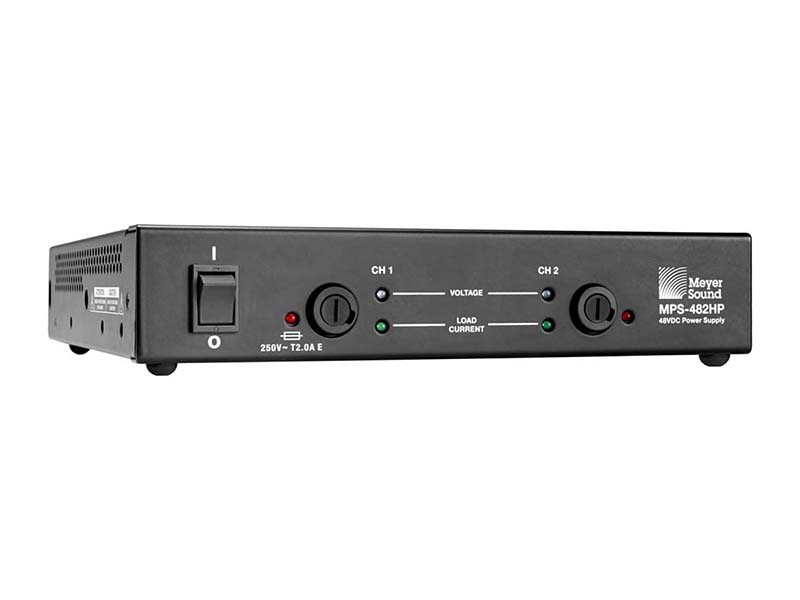

MPS-482HP는 스피커는 두 개의 스피커의 DC 전원과 오디오 신호를 보내는 전원 공급장치입니다. 소음이 거의 없으며 마운팅 옵션을 사용해 랙, 벽, 천장에 설치할 수 있습니다. UP-4XP, UP-4SLIM, MM-4XP 모델을 포함한 MEYER SOUND의 INTELLIGENT DC 스피커를 구동합니다.
MPS-482HP SPECIFICATIONS
FRONT PANEL
LEDs per channel :Two blue LEDs to indicate presence of output voltage
Two green LEDs to indicate load current
Two red LEDs to indicate blown or open fuse
Fuse : Use only Meyer Sound PN 420.041 when replacing
REAR PANEL
Audio Input :
Two XLR 3-pin female connectors OR one 6-position Phoenix connector (not summing to the XLR inputs)
One Link Switch. Sends signal from channel 1 input to channel 2
Channel Output : Two Phoenix 5-pin male connectors
Output Wiring :
Two pins for DC power, three pins for balanced audio
Pin 1: 48 V DC
Pin 2: 48 V DC +
Pin 3: Chassis/earth through 220 kΩ, 1000 pF, 15 V clamp network to provide virtual ground lift at audio frequencies
Pin 4: Signal
Pin 5: Signal +
Output Voltage : 48 V DC per channel
AC POWER
AC Connector : powerCON 20
Voltage Selection : Automatic
Safety Rated Voltage Range : 100–240 V AC; 50–60 Hz; 220 W maximum
CURRENT DRAW
Idle Current : 0.139 A (115 V AC, 60 Hz); 0.071 A (230 V AC, 50 Hz); 0.150 A rms (100 V AC, 60 Hz)
PHYSICAL
Dimensions :
1RU in height, 1/2 width rack mount W: 8.5 in (216 mm) x H: 1.85 in (47 mm) x D: 8.62 in (219 mm)
Weight : 4.4 lb (2 kg)
Rigging :
M6 threads on sides and bottom to support mounting; optional MUB-MPS-482 U bracket for flat surface mounting; optional RMT-MPS-482 Rack Mount Tray for mounting two MPS-482HPs in a standard 19-inch wide, 2 RU rack slot
