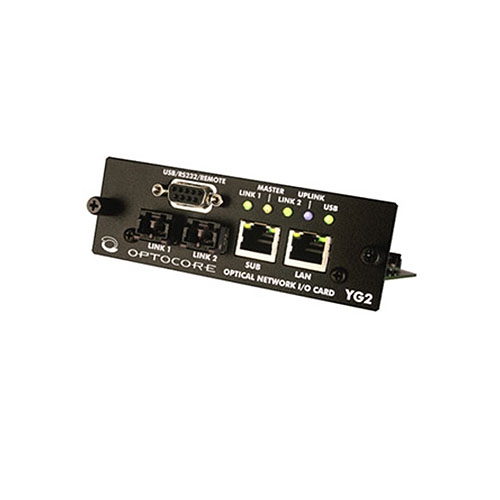

The main card YG2 includes the "heart of Optocore" allowing direct connection of Yamaha consoles to the OPTOCORE ® OPTICAL DIGITAL NETWORK SYSTEM. According to the Yamaha miniYGDAI standard, the YG2 features 16In/16Out audio channels through the console slot. The front panel offers two fibre connections, 10/100MBit Ethernet transport, RS232/USB for Optocore Software and 2x RS422 for transporting of Yamaha Remote Protocol to AD8HR. Additional daughter boards YS2 can be connected via CAT5 cables using the RJ45 "SUB" port, to enlarge the number of audio channel up to 64In/64Out (32In/32Out @ 96kHz).
To the fibre ports any Optocore device can be connected, e.g. another YG2 miniYGDAI card for consoles link or DD32(E) to connect A/D and D/A converters. The DD32(E) is equipped with RS422 In/Out for the Yamaha Remote Port connection.
Yamaha General Digital Audio Interface I/O Card
Yamaha General Digital Audio Interface I/O Card
The main card YG2 includes the "heart of Optocore" allowing direct connection of Yamaha consoles to the OPTOCORE ® OPTICAL DIGITAL NETWORK SYSTEM. According to the Yamaha miniYGDAI standard, the YG2 features 16In/16Out audio channels through the console slot. The front panel offers two fibre connections, 10/100MBit Ethernet transport, RS232/USB for Optocore Software and 2x RS422 for transporting of Yamaha Remote Protocol to AD8HR. Additional daughter boards YS2 can be connected via CAT5 cables using the RJ45 "SUB" port, to enlarge the number of audio channel up to 64In/64Out (32In/32Out @ 96kHz).
To the fibre ports any Optocore device can be connected, e.g. another YG2 miniYGDAI card for consoles link or DD32(E) to connect A/D and D/A converters. The DD32(E) is equipped with RS422 In/Out for the Yamaha Remote Port connection.
KEYFACTS:
Yamaha miniYGDAI card – 16 IN / 16 OUT
2 x fiber SFP ports for redundant Optocore ring
SUB port for YS2 extension card connection
HA Remote port for Yamaha Preamp Control protocol
1 x LAN
