Yamaha General Digital Audio Interface I/O Card for SANE
Y3R-TP
Yamaha General Digital Audio Interface I/O Card for SANE

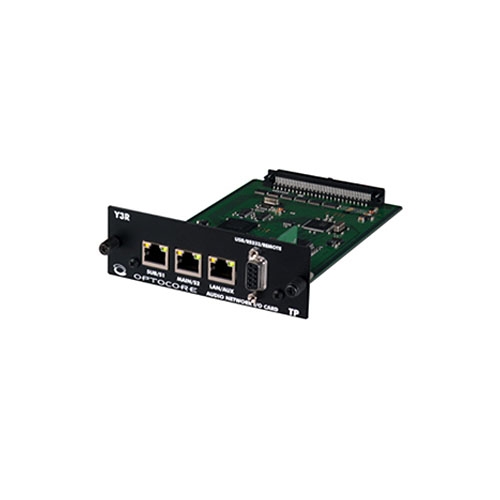

Y3R-TP card is a next generation of well known Optocore cards for Yamaha which allows connecting Yamaha consoles with Cat5 based protocol SANE. In addition to YG2 and YS2 interfaces for Yamaha, Y3R-TP introduces even more flexibility to the system. It can be used in a cost-efficient CAT5-based SANE system and in 2Gbit fiber OPTOCORE network as well. According to the Yamaha miniYGDAI standard, the Y3R-TP features 16In/16Out audio channels through the console slot. The front panel offers two RJ45 connections for SANE, 10/100MBit Ethernet transport, RS232/USB for Optocore Software and 2x RS422 for transporting of Yamaha Remote Protocol to AD8HR. Multiple Y3R-TP cards can be connected via CAT5 cables using the SANE ports, enabling the use of up to 64In/64Out audio channels (32In/32Out @ 96kHz).
Y3R-TP can be easily integrated with 2Gbit OPTOCORE fiber network by connecting to the SANE ports of any FX device, for example V3R-FX, X6R-FX, DD32R-FX or DD2FR-FX.
KEYFACTS:
Yamaha miniYGDAI card – 16 IN / 16 OUT
2 x SANE ports for fiber FX device channel extension or MADI Cat5
Daisy Chain up to 4 (8) cards with single FX unit
HA Remote port for Yamaha Preamp Control protocol
1 x LAN
