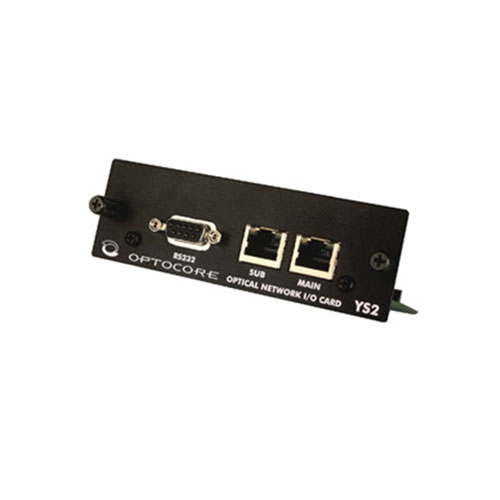

The YS2 card is a cascadable daughter board for Yahama card YG2. According to the Yamaha miniYGDAI standard, the YS2 features 16In/16Out audio channels through the console slot. The front panel offers one "Main" port to connect via CAT5 cables to the RJ45 "SUB" port of a YG2 card. Through the "Sub" port of the YS2 card cascading of up to three YS2 cards is possible, to enlarge the number of audio channels up to 64In/64Out (32In/32Out @ 96kHz).
Yamaha General Digital Audio Interface I/O Card
Yamaha General Digital Audio Interface I/O Card
The YS2 card is a cascadable daughter board for Yahama card YG2. According to the Yamaha miniYGDAI standard, the YS2 features 16In/16Out audio channels through the console slot. The front panel offers one "Main" port to connect via CAT5 cables to the RJ45 "SUB" port of a YG2 card. Through the "Sub" port of the YS2 card cascading of up to three YS2 cards is possible, to enlarge the number of audio channels up to 64In/64Out (32In/32Out @ 96kHz).
KEYFACTS:
Yamaha miniYGDAI card – 16 IN / 16 OUT
MAIN and SUB ports for YG2-based daisy chain
Daisy chain up to 3 (7) YS2 cards with single YG2
1 x LAN
