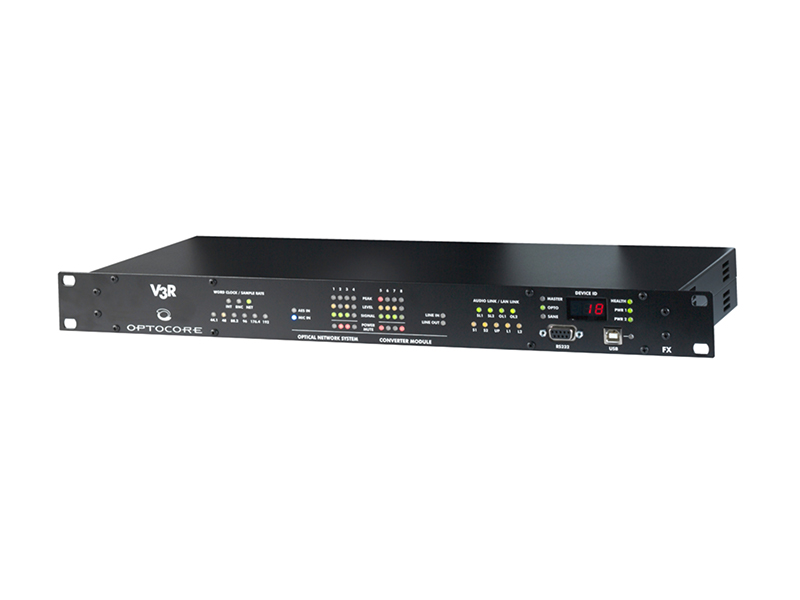

The V3R is a converter unit with a high degree of flexibility concerning the I/O configuration. Three different card types enable to customise the card slot on the rear of the device for the conversion of analogue signals – 8 microphone inputs, 8 line inputs or 8 line outputs – to AES/EBU. The V3R is especially designed for rack mounted applications and permanent installation. All cards are equipped with Euroblock connectors. With the other Optocore or SANE devices, the X6R-FX offers a great flexibility to build the network exactly suiting an application's need. These common installation interfaces provide a simple and cost-efficient connection to other audio equipment.
KEYFACTS:
Single analog board – 8 x Analog channels
Analog board selection: 8 Mic IN, 8 Line IN, 8 Line OUT
Microphone Preamps controllable from different digital consoles
2 x fiber SFP ports for redundant Optocore ring
2 x SANE ports for MADI Cat5, X6R/V3R/Y3R-TP or LAN connectivity
NETWORK CONVERTER UNIT with Ethernet
NETWORK CONVERTER UNIT with Ethernet
The V3R is a converter unit with a high degree of flexibility concerning the I/O configuration. Three different card types enable to customise the card slot on the rear of the device for the conversion of analogue signals – 8 microphone inputs, 8 line inputs or 8 line outputs – to AES/EBU. The V3R is especially designed for rack mounted applications and permanent installation. All cards are equipped with Euroblock connectors. With the other Optocore or SANE devices, the X6R-FX offers a great flexibility to build the network exactly suiting an application's need. These common installation interfaces provide a simple and cost-efficient connection to other audio equipment.
KEYFACTS:
Single analog board – 8 x Analog channels
Analog board selection: 8 Mic IN, 8 Line IN, 8 Line OUT
Microphone Preamps controllable from different digital consoles
2 x fiber SFP ports for redundant Optocore ring
2 x SANE ports for MADI Cat5, X6R/V3R/Y3R-TP or LAN connectivity
4 x RS485/422
2 x LAN
Word Clock I/O
Dual redundant PSU
